Semi Flex Solar Panels

High Efficiency Flexible Solar Modules


Maximum Power Available:

  • 55 W
  • 100 W

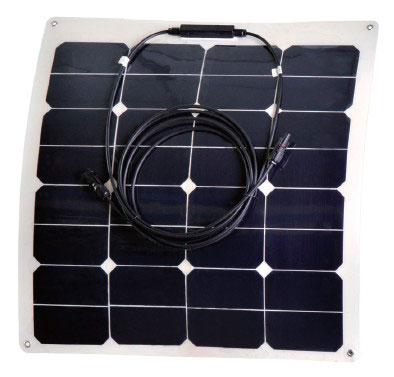

Portable Solar Panel
Portable Solar Panel Opened

Technical Specs


Electrical Characteristics
Product Code SGM-FL-55W SGM-FL-100W
Maximum power(Pmax) 55W 100W
Voltage at Pmax(Vmp) 18.56 18.0
Current at Pmax(Imp) 2.98 5.6
Open-circuit voltage(Voc) 21.90 20.0
Short -circuit current(Isc) 3.16 6.1
Power temperature coefficient -0.38%/℃ -0.38%/℃
Voltage temperature coefficient -0.27%/℃ -0.27%/℃
Current temperature coefficient +0.05%/℃ +0.05%/℃
Cells Efficiency(%) 22.60% 21.70%
The maximum system voltage 45V DC(IEC) 1000V DC
Output power tolerance ±3% ±3%
Specifications
Product Code SGM-FL-55W SGM-FL-100W
Cells USA A grade SunPower solar cell
No.of cells and connections 32(4X8) 32(4X8)
Module dimension 540*580*3mm 540*1050*2mm
Weight 1.23 KG 2.00 KG
Certification CE,RoHS,ISO CE,RoHS,ISO

Downloads


PDF downloads Semi Flex Panel 55 W Data Sheet
