POWER PAK off grid solar system in a box
Take your home and cottage off-grid in ONE day


Just connect a power source and batteries, and you are ready to go!

The Power Pak solar system integration box is designed to save you money and time, by combining all the components required to go off-grid in a single box.

It is fully UL certified to the CSA standard, meeting rigorous safety and quality standards.


The flexibility of the Power Pak makes it useful for different purposes.

  • It can be used as an off-grid system,
  • or as back-up power for home appliances,
  • or as a hybrid system where you can use solar panels as the main power source and keep the grid connected as a back-up power source.

Installing Power Pak system is easier than you think, check out this 5-minute video.


3 Models Available

Power Pak MINI
For tiny homes, cabins, RVs and boats
3 KW capacity
12 VDC input
Power Pak COMPACT
For typical cottage
4 KW capacity
24 VDC input
Power Pak GRANDE
For residential
10 KW capacity
48 VDC input

Complete Power Pak off-grid kits available here.


Load Evaluation

Based on your electrical power usage, we can calculate your electrical load and determine a system that best fits your needs.



How Power Pak off-grid solar system works - block diagram



Why the Power Pak is the quickest + simplest way to go off-grid
Comparing the Power Pak to the conventional approach

A quick look at the differences:

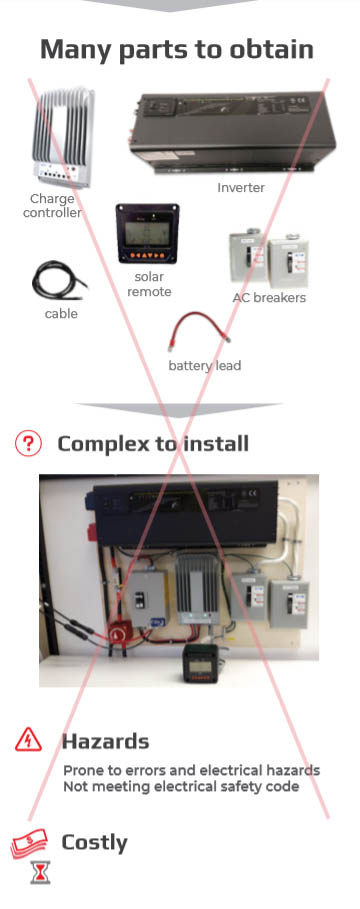

Conventional method
conventional approach to installing solar system
comparing Power Pak to conventional approach to install an offgrid solar system
POWER PAK
Microgreen Power Pak quicker approach to installing solar system


Installing the Power Pak is EASIER than you think

Installing the Power Pak off-grid solar system is easy, simple, safe and secure!

Check out the 11-minute overview (left) and the 5-minute installation video (right).



A customer testimonial

I highly recommend Microgreen. I put off investing in solar equipment for years because every time I met with solar equipment suppliers they would up sell me to a system I couldn’t afford. Microgreen is quite different: they won’t let you buy anything you don’t need. I have a high level of trust in their integrity and their expertise.
- Darrell Jarvis
A customer testimonial

What a customer says about Microgreen solar panels and off-grid system design for his needs.

Power Pak COMPACT 4 KW capacity system installed for Darrell.

A customer testimonial for an offgrid solar system custom designed for his specific needs

A complete off-grid system with Microgreen Power Pak integration box + batteries designed for Darrell's solar needs.


KEY FEATURES

  • Save Money and Time
    The Power Pak box is designed to save money and time, by combining all the components required to go off-grid in a single box.
  • Easy Installation
    Just connect a power source and batteries, and you are ready to go!
  • All components assembled in a single box, safe to handle, ULc approved for safety
    Inverter, charge controller, DC monitor, AC monitor, circuit protection, and connectors are integrated into a single box, saving cost of obtaining separate components, and the time of integrating them.
  • Multi-Purpose
    The flexibility of the Power Pak makes it useful for different purposes:
    • Off-Grid System (Mode 2 setting)
      By connecting Solar panels to a Power Pak, the batteries can be primarily charged by solar energy, creating an off-grid system. Combine this with a stand-by generator that acts as a secondary energy source.
    • UPS (Mode 1 setting)
      By using the grid as a power source*, use it as back-up power for appliances (i.e. fridge, furnace, water pump, etc.) The Power Pak will automatically switch to battery power when the grid goes down. Also protects appliances from electrical surges.
    • Hybrid System
      Use solar panels as the main power source, but keep grid connected as a back-up power source, thereby eliminating the need to buy noisy, costly diesel generators, while reducing carbon emissions and noise at the same time.
  • Easy monitoring of system power and voltage.
    The Power Pak comes with built-in meters for battery voltage, generated solar power
  • Accepts multiple sources of power
    Solar for off-grid use, grid for UPS use, generator as a secondary source for off-grid use, hybrid mode uses solar as main, and grid as back-up source.
  • Customizable and expandable
    Add solar panels and batteries to expand capacity when needed.

PRODUCT SPECS


Power Pak product specifications summary
MODEL MINI COMPACT GRANDE
INVERTER POWER RATING 3 KW pure sine wave 4 KW pure sine wave 10 KW pure sine wave
DC VOLTAGE 12 V 24 V 48 V
CONTROLLER 40 A MPPT 40 A MPPT 80 A MPPT
DC MONITOR PWM controller meter Ep Solar MT-50 Ep Solar MT-50
AC MONITOR Displays AC power consumption percentage Displays AC volts, watts & KW consumed Displays AC volts, watts & KW consumed
DC FUSE 150 A 300 A 300 A
AC BREAKERS Input: 30 Amp
Output: 30 Amp		 Input: 30 Amp
Output: 30 Amp		 Input: 50 Amp
Output: 60 Amp
SOLAR INPUT 150 V / 520 W 150 V / 1040 W 150 V / 4000 W
WARRANTY 2 years 2 years 2 years

download Power Pak user manual Power Pak user manual - for complete product specs.

Power Pak off grid solar system download guide Power Pak installation manual

Power Pak off grid solar system brochure download Power Pak brochure
