ENERGY PAK
Lithium Batteries

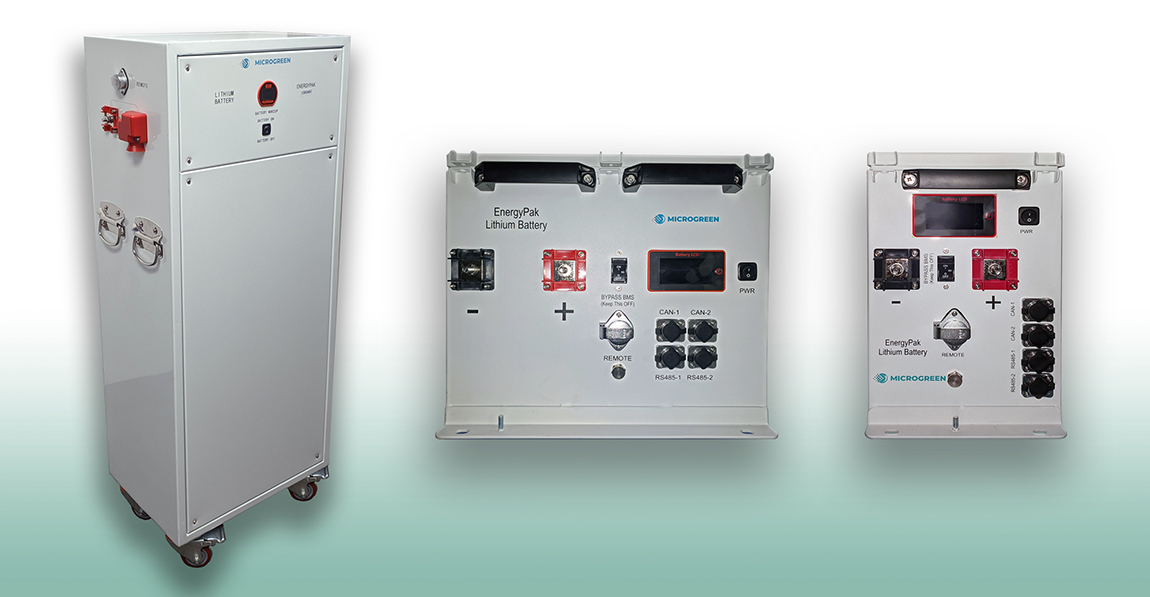

Energy Pak lithium batteries

The Energy Pak Advantage
More power. Less weight. Lower cost.

Higher quality battery cells

Energy Pak uses rigorously tested lithium cells for heavy duty applications by CATL, the world leader in lithium technology.

Built-in heater

Protects battery cells in cold weather and improves performance.

Easy battery monitoring

Energy Pak has a remote display to easily control your energy usage with real-time reporting of battery status.

EnergyPak marine lithium battery remote control

LED display / Remote Controller

Safer with smart battery management

Microgreen's built-in Battery Management System (BMS) is the brain of the Energy Pak lithium bank that controls and regulates the power delivery. It protects from over charge, over discharge and over current, thus extending battery life.

Energy Pak lithium battery management system monitors power level

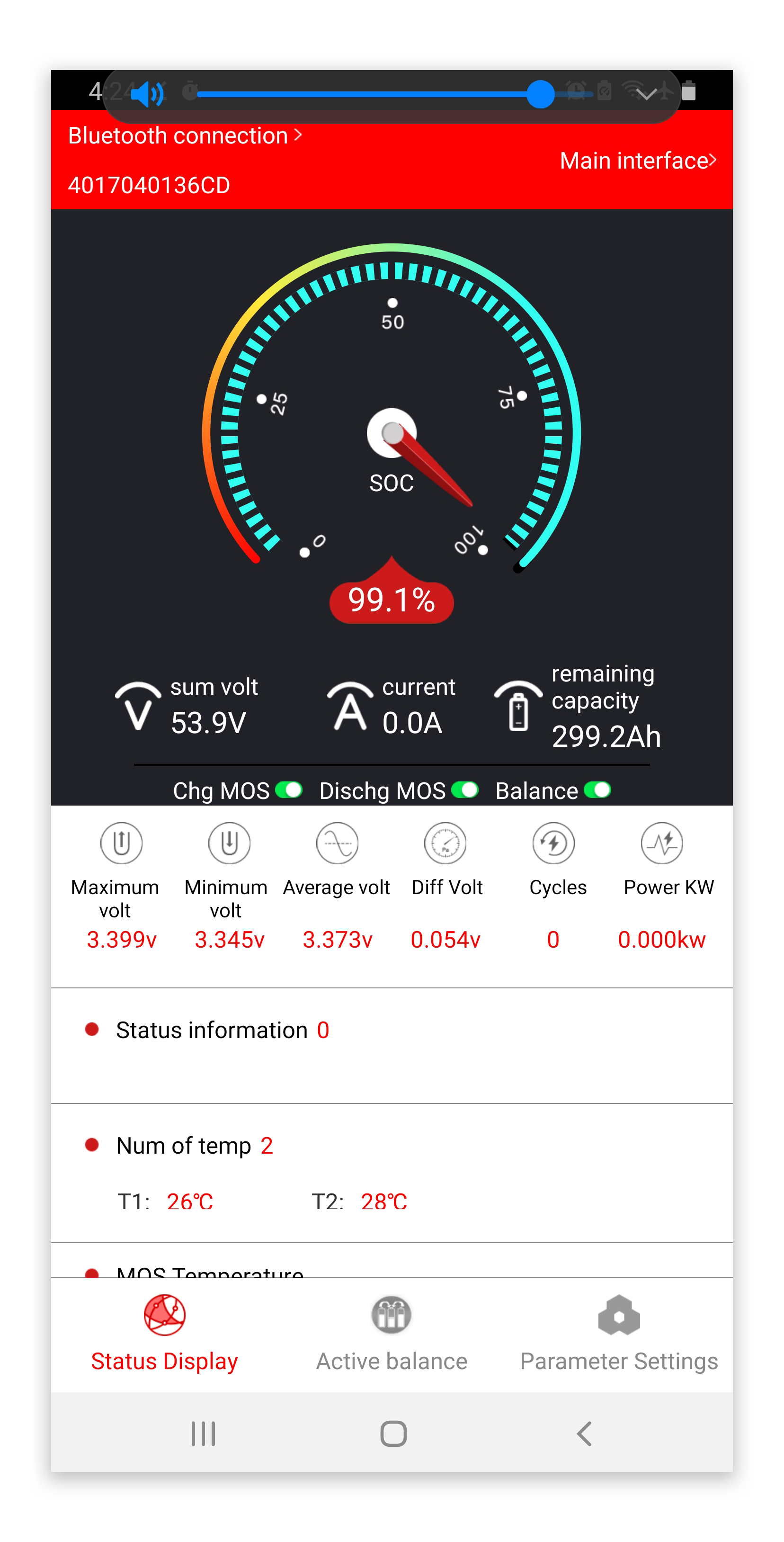

EnergyPak lithium battery management system monitoring via bluetooth app

Smart BMS monitoring via bluetooth app

3 Models of Energy Pak - Increased Capacity for 2023!

For boat, RV or cabin

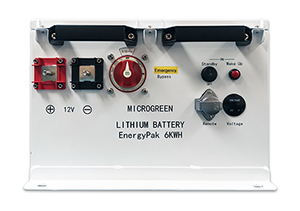

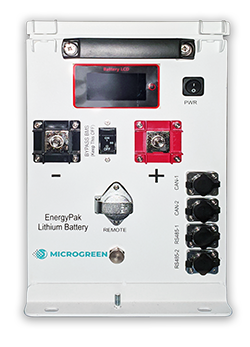

Energy Pak 3.5

3.5 kWh capacity
12 Volt output

^CDN$ 3,200^.00

For cottage, modular home or bigger boats

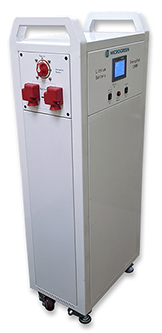

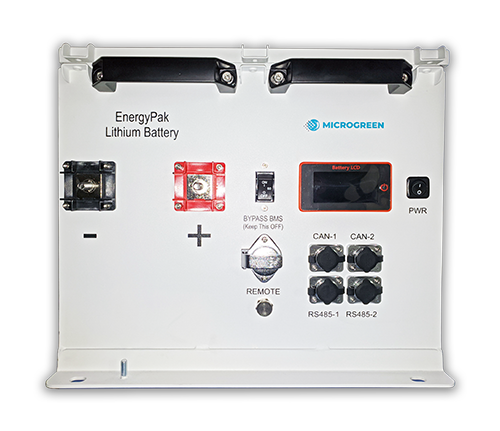

Energy Pak 7

7 kWh capacity
12/24 Volt output

^CDN$ 5,200^.00

For off-grid home, transit bus emissions reduction system

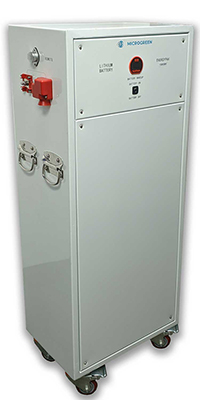

Energy Pak 14

14 kWh capacity, 24/48 Volt output

^CDN$ 9,200^.00

We can calculate your electrical load and determine a system that best fits your needs based on your electrical power usage.

Why choose lithium batteries over lead acid

marine lithium light weight benefits

marine lithium longer life benefits

marine lithium zero maintenance benefits

marine lithium quiet, no noisy generator benefits

PRODUCT SPECS

Energy Pak Lithium Batteries Specifications Summary

MODEL	Energy Pak 3.5	Energy Pak 7	Energy Pak 14
ENERGY	3.5 kWh	7 kWh	14 kWh
WEIGHT	33 kg	60 kg	115 kg
DIMENSIONS	L x W x H 60 x 21 x 27 cm 15 x 9 x 13 in	L x W x H 62 x 42 x 27 cm 15 x 20 x 13 in	L x W x H 33 x 56 x 122 cm 21 x 12 x 47 in
OUTPUT VOLTAGE	12 V	12 V or 24 V	24 V or 48 V
MAXIMUM POWER	3.5 kW	3.5 kW or 7 kW	7 kW or 14 kW
OPERATING LIFE TIME	6000 cycles	6000 cycles	6000 cycles
WARRANTY	5 years	5 years	5 years

FEATURES

Low cost
Lithium battery costs less over its entire lifetime.
Light weight
Weighs 75% less than lead acid. Saves fuel when used in a vehicle or a boat.
Powerful
Able to deliver higher peak power for heavy loads than lead acid - continuous current as high as 250 A and surge current of 700 A.
Fast charging
Fully charges in 2 hours.
Long life time
Typically 6000 charging cycles, or more than 4 times the lifetime of lead acid.
High quality
Energy Pak uses battery cells from the world leader CATL, and are backed by a 3 year warranty plus local after-sales service, ensuring trouble-free performance.
Built-in Battery Management System (BMS)
Ensures the safe operation of the battery by protecting it from over charge, over discharge and over current, thereby extending the lifetime of the battery
Built-in heater
Protects battery cells in cold weather and improves performance.
Battery monitoring
User can monitor the battery status through an LCD display or computer connection.
Convenient
Simple connections make lithium batteries easier to deploy and use.
Customizable
Microgreen can make a custom conﬁguration to match your power, voltage and capacity needs.

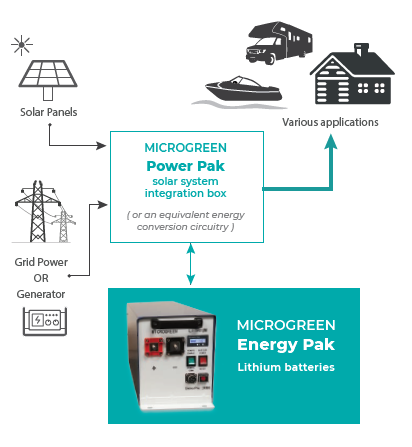

Energy Pak lithium battery block diagram

DOWNLOADS

Energy Pak lithium brochure

Energy Pak lithium user manual

We ship across Canada + USA Order Now Questions? we can help
